Design review· Release 2.68
Design review software with review codes and CRS rows.
Most design software stops at the design. The benches carry on to the check a supervision consultant, PMC or client team has to make of a design by others — and to the paperwork that follows it.
The reviewer's calculation, not just the designer's.
Design verification is the third stage in every bench, run by the same engines as the design itself.
Submitted beside calculated
Enter the values from the contractor's calculation or drawing; each one is compared with the bench's own result against acceptance bands you set, and coded A, B or C with the clause it rests on.
CRS rows, not screenshots
Comments come out as CRS (comment review sheet) rows in your format — category, clause, review code, status coloured by code — ready to paste or export to Excel.
Resubmissions without retyping
Start the Rev.01 review and the open comments are frozen as history; follow-ups sit under the original in the same row, and items now compliant close as Code A.
Schedule checks
Paste a contractor's cable or instrument schedule: missing and extra cables, ratings, voltage drop with the scheduled length, cores, segregation and spares are re-checked line by line.
Review Register
One project-wide submittal log and comment register from every bench, with Rev.xx history and CRS export in ASH or client format.
From the check register to the CRS.

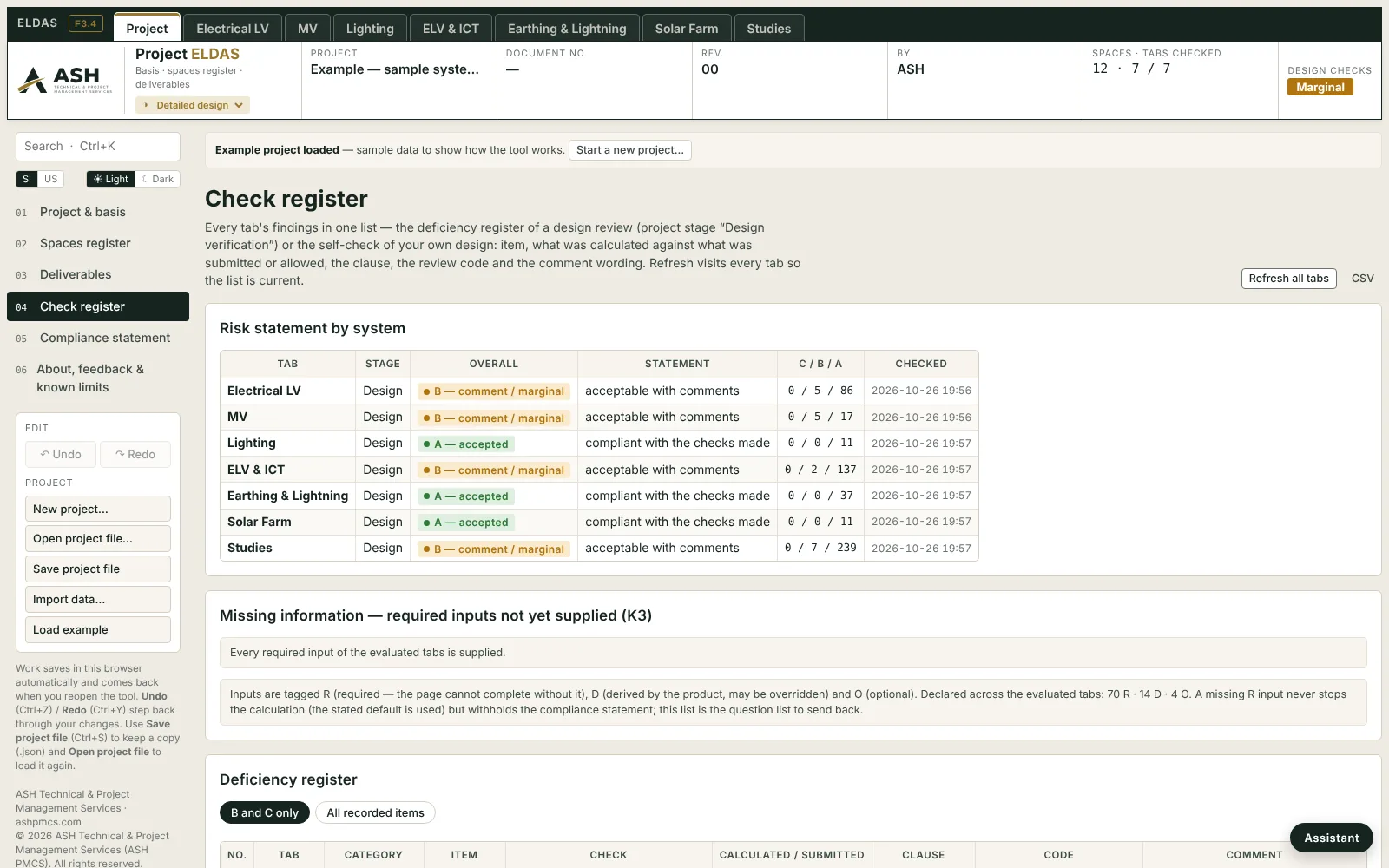

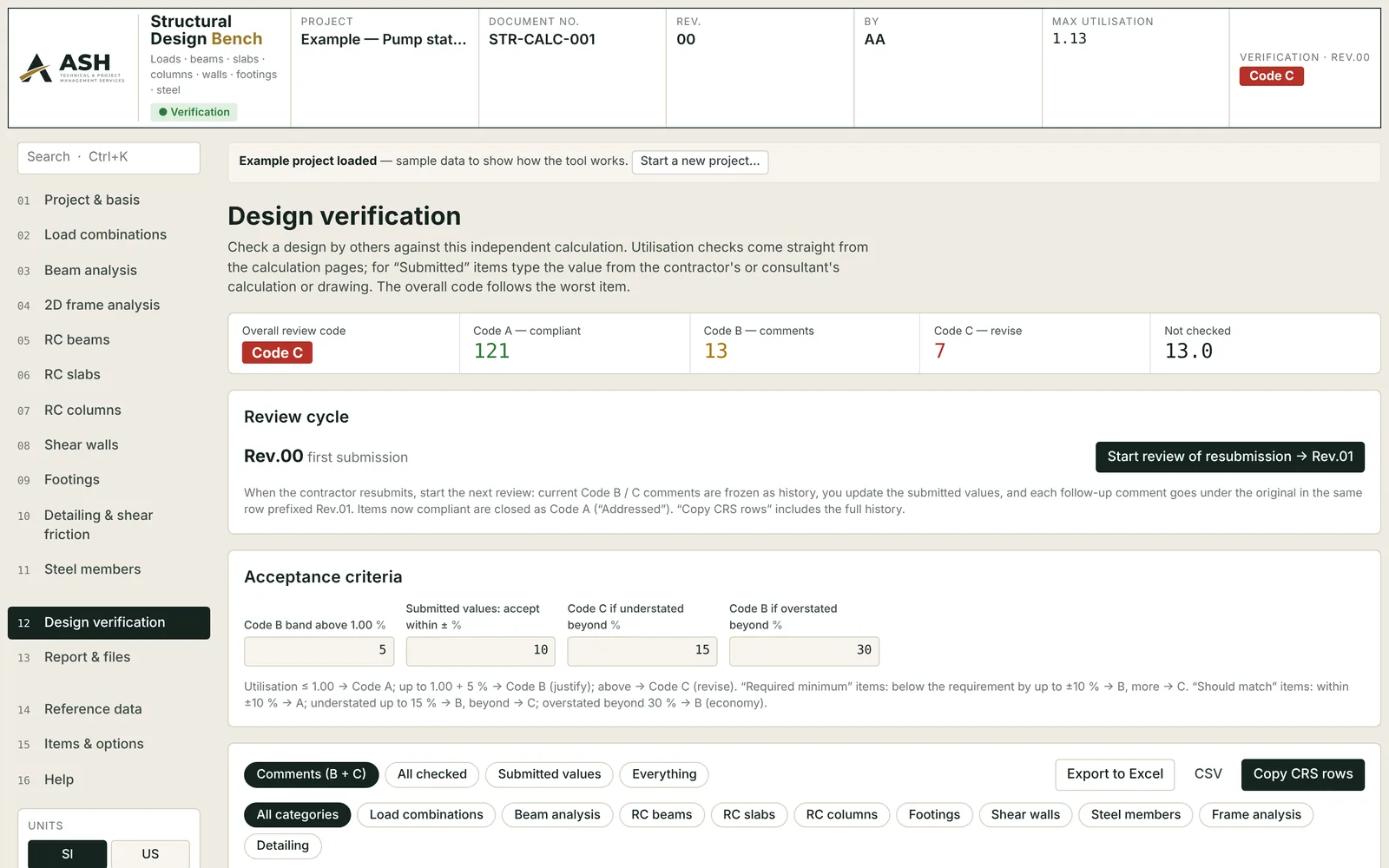

Design verification in the Structural Design Bench and the check register of ASH ELDAS, shown with the built-in example projects.
Concept, detailed design, verification — the same engines throughout.
A concept scheme, the detailed design and the reviewer's check are run by the same code, so they never disagree with each other. Choose the stage when a project starts; develop a concept into the detailed design in one click.
From a few inputs to a sized scheme
- Floor areas, occupancy, grid, flows, population
- Plant sizes, member sizes, main feeders, storage, quantities
- For options, budgets and early coordination
Every element, every check
- Element-by-element sizing with code checks and clause references
- Diagrams, schedules, single-line and riser diagrams, SVG export
- Calculation report for submission; Excel and CSV schedules
Independent check of a design by others
- Submitted values beside the calculated ones
- Review codes A / B / C with the clause; CRS comment rows
- Rev.xx resubmission cycles; value-engineering opportunities
Can I bring in the contractor's schedules?
Yes. Import data in any bench reads Excel, CSV, pasted tables and DXF; the Data Import tool also reads schedules from text PDFs and traces single-line diagrams. Cable and instrument schedules can be checked line by line against the calculation.
Is there a review-only licence?
Yes. Packages include a review package — verification only, for supervision consultants and PMCs — single- or multi-user. Pricing is published after the company registration completes; ask for a quotation in the meantime.
Which codes and standards do the benches use?
The Saudi Building Code set (SBC 201, 301, 304 and 801) and the Saudi Civil Defence regulations, ACI 318 and ASCE 7, AISC 360-22, the International Codes (IBC, IPC, IMC, IFC), NFPA 13, 14, 20, 72, 92, 101 and 2001, NEC and IEC 60364 / 60909 for electrical, IEEE 1584 for arc flash, ASHRAE Fundamentals for HVAC, ASME B31.3, API 520, ISO 5167 and IEC 61511 for piping and instruments, IEC 62676-4 for CCTV, and QCS 2014 with the Qatar Civil Defence guidelines among others. Every check names its clause, and each requirement pack states the edition it quotes.
Is my project data sent anywhere?
Your project never leaves your computer: the benches and ELDAS keep projects in the browser and in the files you save. The pages serve their own fonts; the trial applications still load their web fonts from Google Fonts. See the privacy notice.
Try design verification for 30 days.
[email protected]The trial builds are time-limited, open at the design-review stage and watermark their reports. For a walk-through on a package of yours, or the full version: which bench, whether you design or review, and how many people would use it — we reply within one business day. Pricing is published after the company registration completes.
