ASHEngineering Design Suite

Release 2.90· November 2026

Every discipline, sized and checked in one file.

The ASH Engineering Design Suite is a set of Design Benches — one per discipline — for concept sizing, detailed design with code checks, and independent verification of a design by others with review codes and a comment register. Each bench is a single file that opens in Chrome or Edge, offline, with the clause behind every number.

Choose your route

Design it, check someone else's, or run the project.

For design teams that size and check their own work, and for PMCs and supervision consultants who check a design by others: the same engines run both. Pick the product that matches the job; one registration opens all of the trials.

Electrical · ASH ELDAS E3.21

Electrical design and review

Eight tabs — LV, MV, lighting, ELV & ICT, earthing & lightning, solar farm and network studies — with one check register and CRS rows.

Start the ELDAS trial →
All disciplines · Design Suite 2.90

Seventeen Design Benches

Structural, civil, electrical, HVAC, piping, process, fire & life safety, plumbing and more — concept, detailed design and verification in each.

Start the Design Suite trial →
Projects · ASH P&L Suite

Project P&L, risk and cash flow

For consultancies, from bid to close: the project's profit and loss, its risks and its cash flow in one place.

Start the P&L Suite trial →
Planning · ASH Town Planning Suite T2.4 (preview)

Towns, districts and housing schemes

Eleven tabs: project, stages, site, plan map, master plan, services, subdivision, compliance, roads, utilities and networks. Preview, with a 30-day online trial.

Start the Town Planning trial →
ASH ELDAS — online trial

The electrical suite, in one page.

ASH ELDAS E3.21, the Electrical Design & Analysis Suite, is the electrical-only product composed from the suite's electrical benches — concept, design and design verification in every tab. Try all of it for 30 days in Chrome or Edge.

Start the 30-day online trial →

8 tabs

Project · Electrical LV · MV · Lighting · ELV & ICT · Earthing & Lightning · Solar Farm · Studies.

One load register

Loads from the lighting, ELV, fire alarm, I&C and solar pages join a single load register on the Electrical LV tab.

Check register & compliance statement

Every tab's B / C items in one register, and a compliance statement rated from those checks.

MV, network studies and solar farm

MV system, transformers, cables and protection grading; a study network built from the LV and MV model; a solar farm bench.

Inside ASH ELDAS

From the load register to the network study — one project, every tab.

Screens from the built-in example project of ELDAS. Every figure carries the clause it was checked against; the check register collects the findings of all eight tabs.

ELDAS — Electrical LV · Boards & feeders
ELDAS Electrical LV tab, Boards and feeders page: distribution boards with feeder type, length, method, group factor, parallel cables, diversity and rating, and the submitted feeder design checked for Ib ≤ In, Ir ≤ Iz and voltage drop
Boards & feedersDemand carried up the board tree; the submitted cables and breakers checked line by line.
ELDAS — MV · Protection grading
ELDAS MV tab, MV protection grading page: relay settings and operating times per incomer, feeder and transformer, and the CT selection table
MV protection grading50/51 and 51N settings per device, operating times at 2, 5, 10 and 20 × Ip, CT class and burden.
ELDAS — Studies · Short circuit
ELDAS Studies tab, Short circuit page: bus fault levels Ik3, Ik1, Ip and Icw against busbar withstand, and the device duty table
Network studiesLoad flow, short circuit, discrimination, motor starting and power quality on the network built from the LV and MV tabs.
ELDAS — Project · Check register
ELDAS Project tab, Check register page: risk statement by system with the overall code of every tab, the missing-information list and the deficiency register
Check registerEvery tab's findings in one list with review code, clause and comment wording — the deficiency register of a design review.

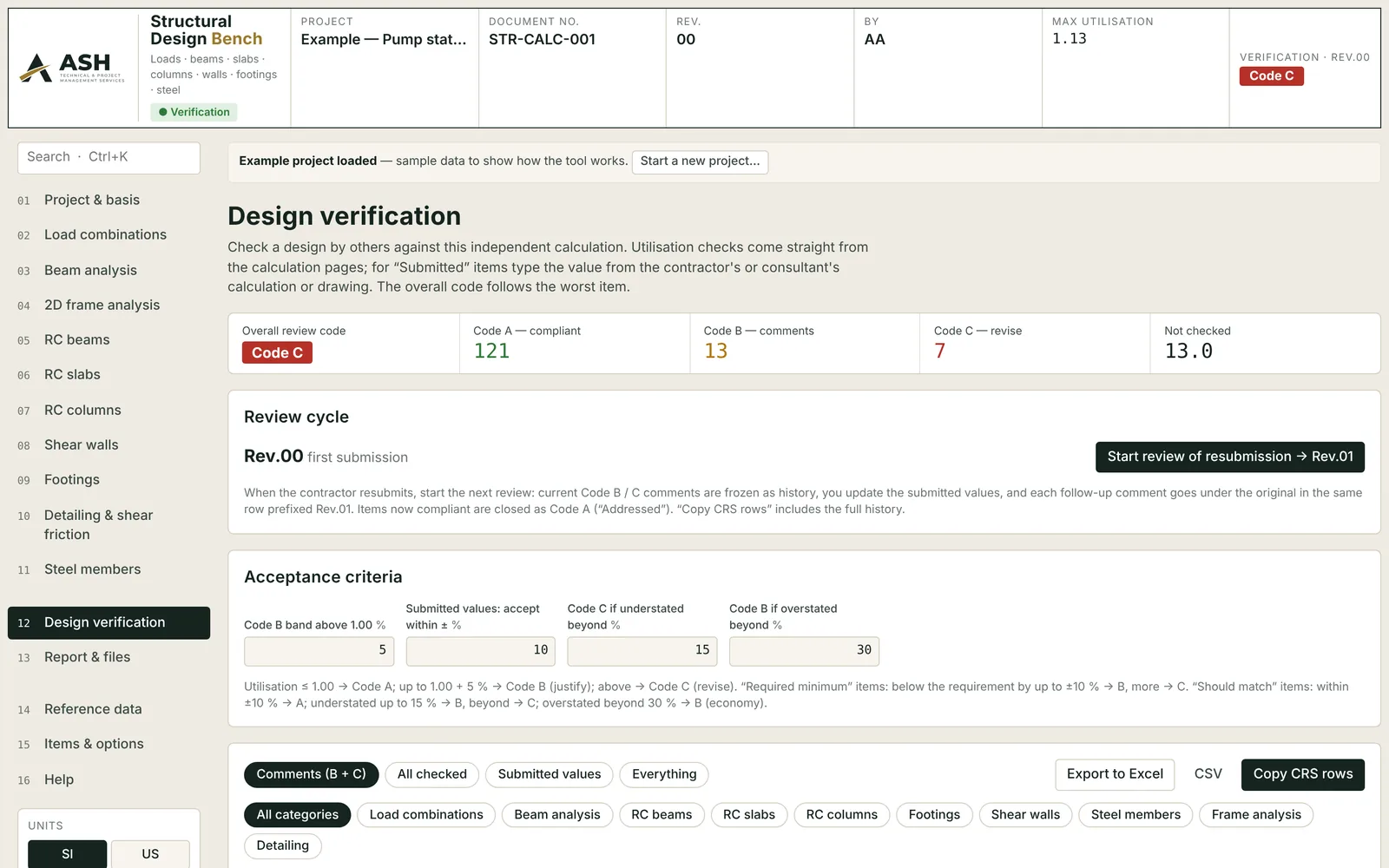

Structural Design Bench — Design verification
Structural Design Bench, Design verification page: overall review code C, with 121 items at Code A, 13 at Code B and 7 at Code C, the review cycle panel and the acceptance criteria
Design verification in the Structural Design Bench: every check from the calculation pages rolls up into an overall review code, with the comment rows ready for the CRS.
17Design Benches
03Stages in every bench
30Day ELDAS online trial
0Installs or project uploads
Stages

Concept, detailed design, verification — the same engines throughout.

A concept scheme, the detailed design and the reviewer's check are run by the same code, so they never disagree with each other. Choose the stage when a project starts; develop a concept into the detailed design in one click.

1 · Concept design

From a few inputs to a sized scheme

  • Floor areas, occupancy, grid, flows, population
  • Plant sizes, member sizes, main feeders, storage, quantities
  • For options, budgets and early coordination
2 · Detailed design

Every element, every check

  • Element-by-element sizing with code checks and clause references
  • Diagrams, schedules, single-line and riser diagrams, SVG export
  • Calculation report for submission; Excel and CSV schedules
3 · Design verification

Independent check of a design by others

  • Submitted values beside the calculated ones
  • Review codes A / B / C with the clause; CRS comment rows
  • Rev.xx resubmission cycles; value-engineering opportunities
Benches

Seventeen benches, one way of working.

Sixteen discipline benches and an Integrated Design Bench that drafts a whole facility from its type and plot. The same layout, search, units switch, report and verification page in every one.

Whole project

Integrated

41 facility types — water and wastewater plants, buildings, electrical facilities and external works. From the type and plot to a site layout, building programme, process flow diagram, electrical maximum demand and single-line diagram, HVAC, plumbing, fire, ELV and structural rules of thumb, a 3D massing view — then one-click project packages for every discipline bench.

Architectural

Areas and occupant loads, means of egress, plumbing fixture counts, parking, stairs, ramps and doors, envelope U-values; fire and life-safety provisions export.

Facility & delivery

Energy

Loads and profiles, demand, transformer and cable losses, power factor, KPIs against benchmarks, an ISO 50006 energy baseline, GCC tariffs and energy cost.

Cost

CAPEX from the bench BOQs and parametric rates, OPEX, escalation, AACE estimate class and ISO 15686-5 life-cycle cost.

Baseline

Programme from award to handover: WBS templates, critical path (CPM), FIDIC milestones, earned value, MS Project XML export and programme review.

Building services & life safety

Electrical

Load schedule and maximum demand, cables with derating and voltage drop, busducts, short circuit (IEC 60909), protection and discrimination with manufacturer curves, life-safety supplies, arc flash (IEEE 1584-2018), lighting, earthing, single-line and riser diagrams, cable-schedule check.

Electrical design software →

Earthing & Lightning Protection

Soil resistivity and electrodes, IEEE 80 substation grid (touch and step voltages), building and plant earthing, ICT clean earth, lightning protection to IEC 62305 and NFPA 780 with a roof plan.

Solar Farm

EPW or monthly irradiance, energy yield and performance ratio, string sizing, DC cables and fuses, inverter count, step-up transformers and the MV collector.

HVAC

Cooling loads (RTS or CLTD), heating loads, annual energy from station statistics or an hourly EPW weather file, ventilation, duct sizing by equal friction or static regain, chilled-water piping, VRF refrigerant lines, HVAC feeders and schematics.

HVAC design software →

Plumbing & Fire

Water supply by fixture units and booster head, drainage, rainwater, storage; sprinkler hydraulics for tree, looped and gridded systems with design-area layout and calculation sheets; standpipes, fire pump and tank.

Fire & Life Safety

Required provisions by occupancy, height and area; fire alarm devices, loops, panels and batteries; hose reels, hydrants, rising mains, fire-water scenarios; clean agent, CO₂ and aerosol; stair, lobby, car-park and atrium smoke control; emergency lighting.

Fire and life safety design software →

ELV / ICT

Structured cabling and fibre loss budgets, network and PoE, CCTV pixel density (IEC 62676-4 DORI) with storage and a camera plan, fire detection spacing, standby batteries, notification circuits, PA / voice alarm, ICT-room UPS and cooling, ELV cable-schedule check.

Piping

Line-list hydraulics, ASME B31.3 wall thickness and branch reinforcement, pumps and NPSH, supports and expansion, buried and submerged pipe, looped networks with EPANET exchange, fire flow, extended-period simulation, surge by the method of characteristics.

Piping design software →

Civil & structural

Structural

Load combinations (ASCE 7 or SBC 301), beams and 2D frames with second-order P-Δ, RC beams, slabs of every common type, rectangular and circular columns, shear walls, pad, strip, combined and raft footings, development and lap lengths, shear friction, and steel members to AISC 360-22 — with plan and section sketches and member schedules.

Structural design software →

Civil

Pressure mains, pumping stations with parallel pumps, system curves and NPSH, gravity sewers, storm drainage by the rational method, wet wells, surge screening.

Process & industrial

Process

Flowsheet mass balance with recycles, heat exchangers, separators, tanks and venting, dosing, activated sludge and clarifiers, filters, RO and membranes, cooling water, steam and gas compression; concept treatment trains.

Process design software →

Instrumentation & Control

Instrument index and I/O, control valves (IEC 60534), orifice plates (ISO 5167), relief valves (API 520), thermowells, DP level, 4–20 mA loops, intrinsic safety, SIL by LOPA, instrument air, cabinets; instrument cable-schedule check.

Across the suite

Import in every bench

An Import data button in each bench: Excel, CSV, pasted tables and DXF go straight into the open project — columns matched automatically, append, replace or update by ID, one Undo.

Data Import tool

A separate tool for the harder sources: schedules read from PDF as well as Excel, CSV and DXF, and single-line diagrams traced through their line work so each board arrives with its feeder and breaker.

Review Register

One project-wide submittal log and comment register from every bench, with Rev.xx history and CRS export in ASH or client format.

Launcher & search

One start page for every tool; Ctrl+K in any bench finds a tag, input, check or comment across all its pages.

Inside the benches

Diagrams, schedules and sketches drawn from the numbers.

Every drawing is generated from the calculation data, so it stays in step with the results. Export any of them as SVG for drawings and reports. Shown with the example projects that ship with each bench — twelve screens from six of the seventeen.

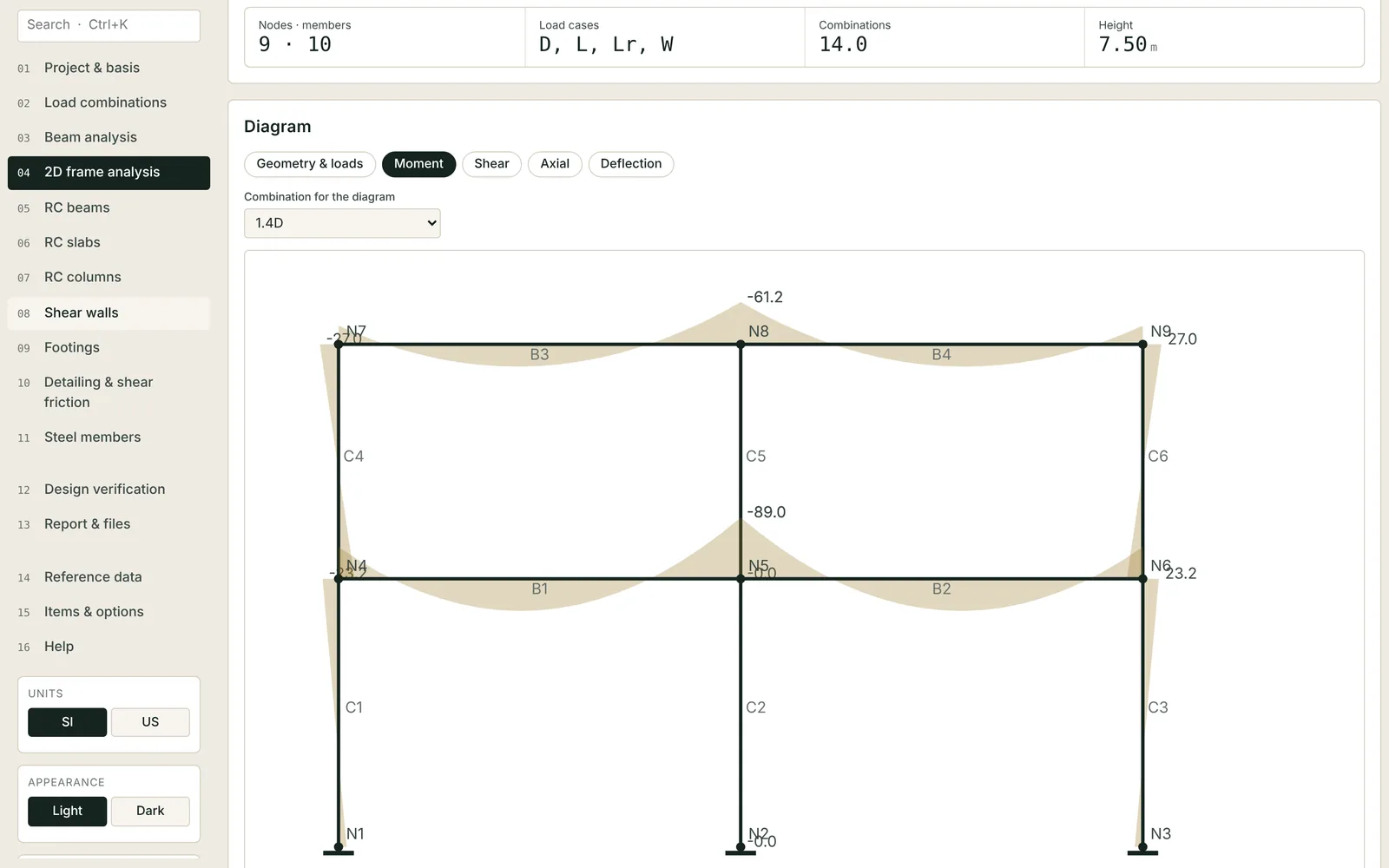

Structural — 2D frame analysis
Bending moment diagram of a two-bay, two-storey frame in the Structural Design Bench
2D frame analysisMoment, shear, axial and deflection diagrams per combination; members become design sections in one click.

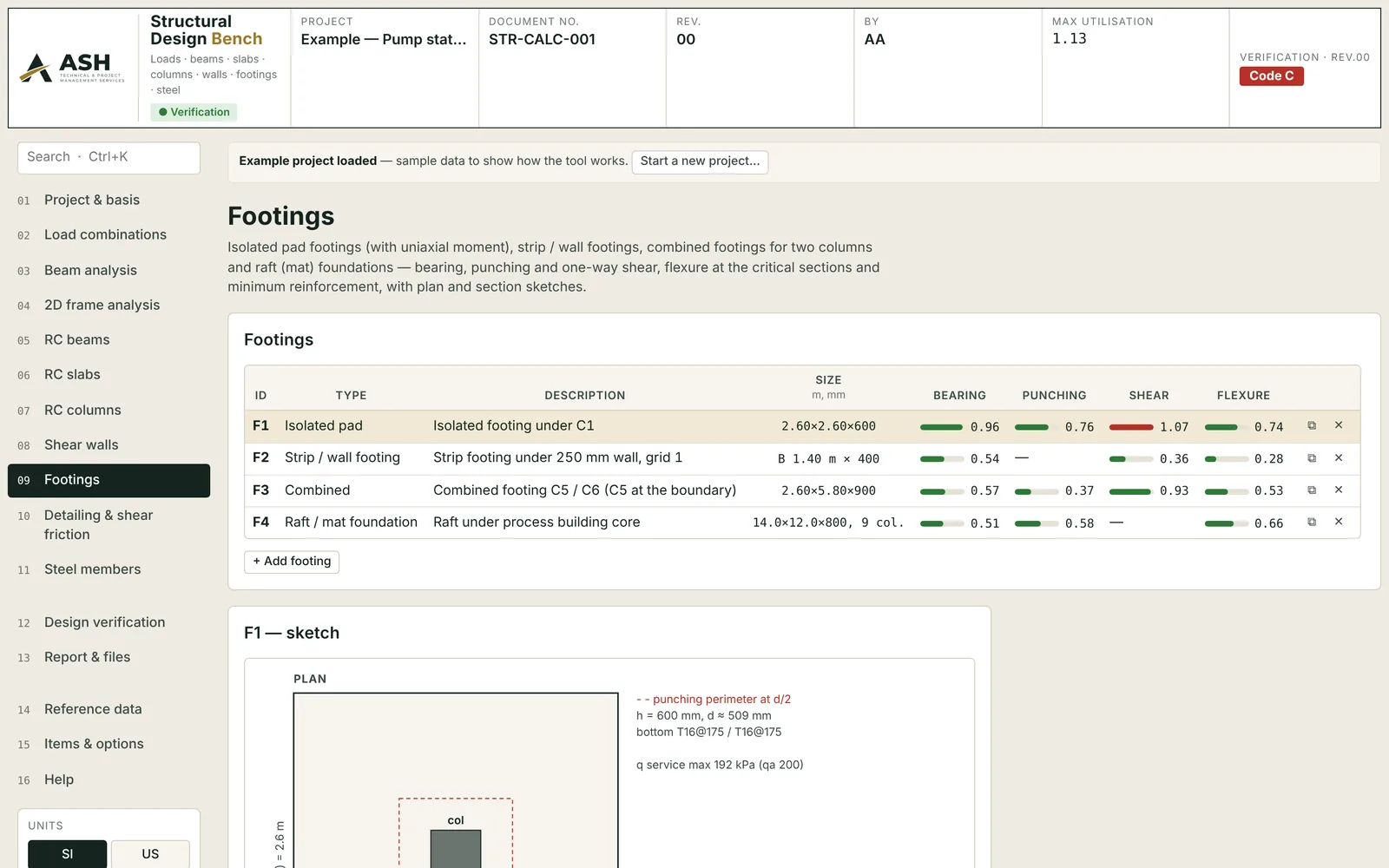

Structural — Footings
Footing schedule with bearing, punching, shear and flexure utilisation bars, and the plan sketch of an isolated pad footing
FootingsPad, strip, combined and raft footings with bearing, punching, shear and flexure utilisation and a plan and section sketch.

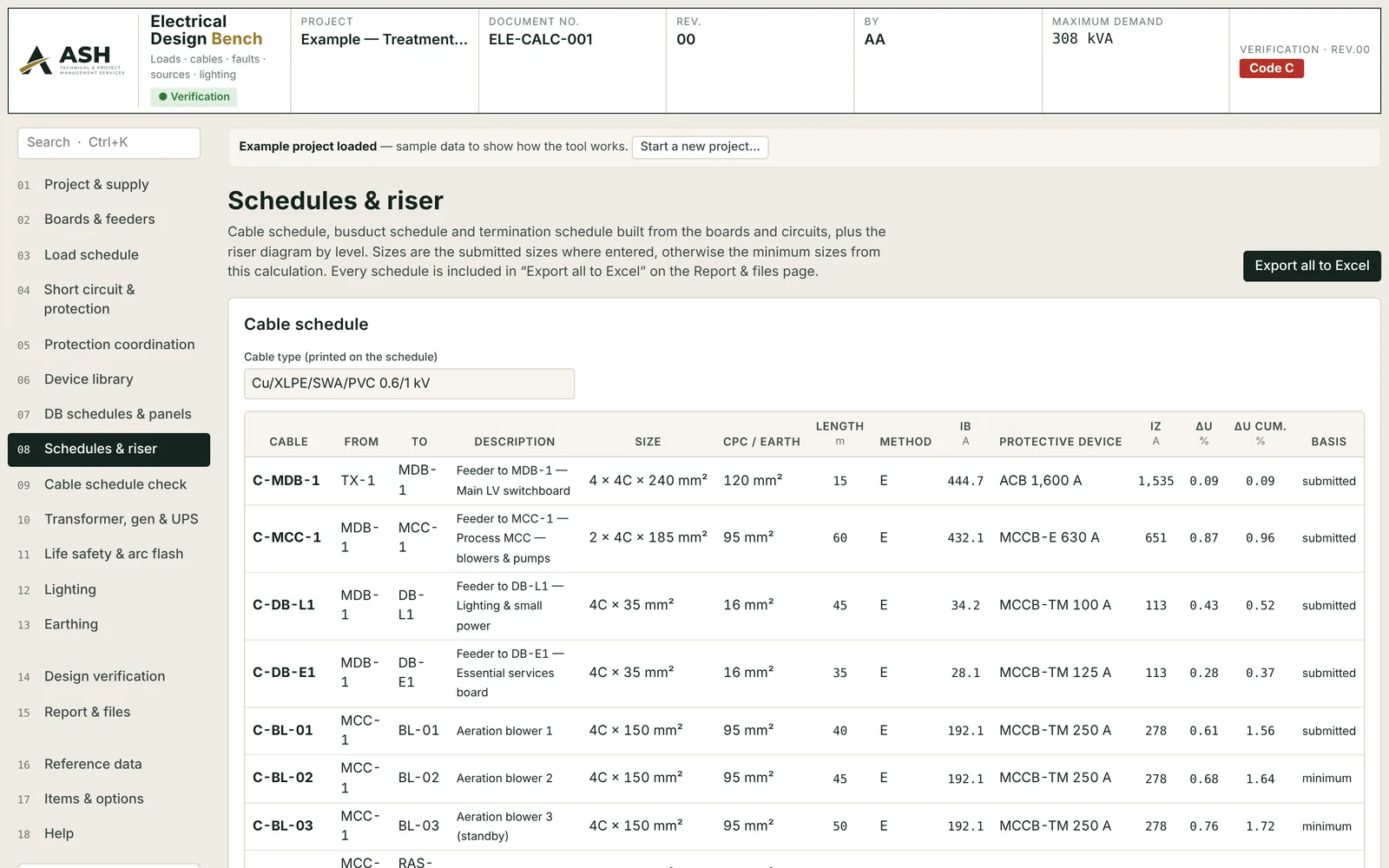

Electrical — Schedules & riser
Cable schedule in the Electrical Design Bench with size, CPC, length, design current, protective device, current rating and voltage drop for each cable
Cable scheduleCable, busduct and termination schedules built from the boards and circuits, with cumulative voltage drop — exported to Excel in one click.

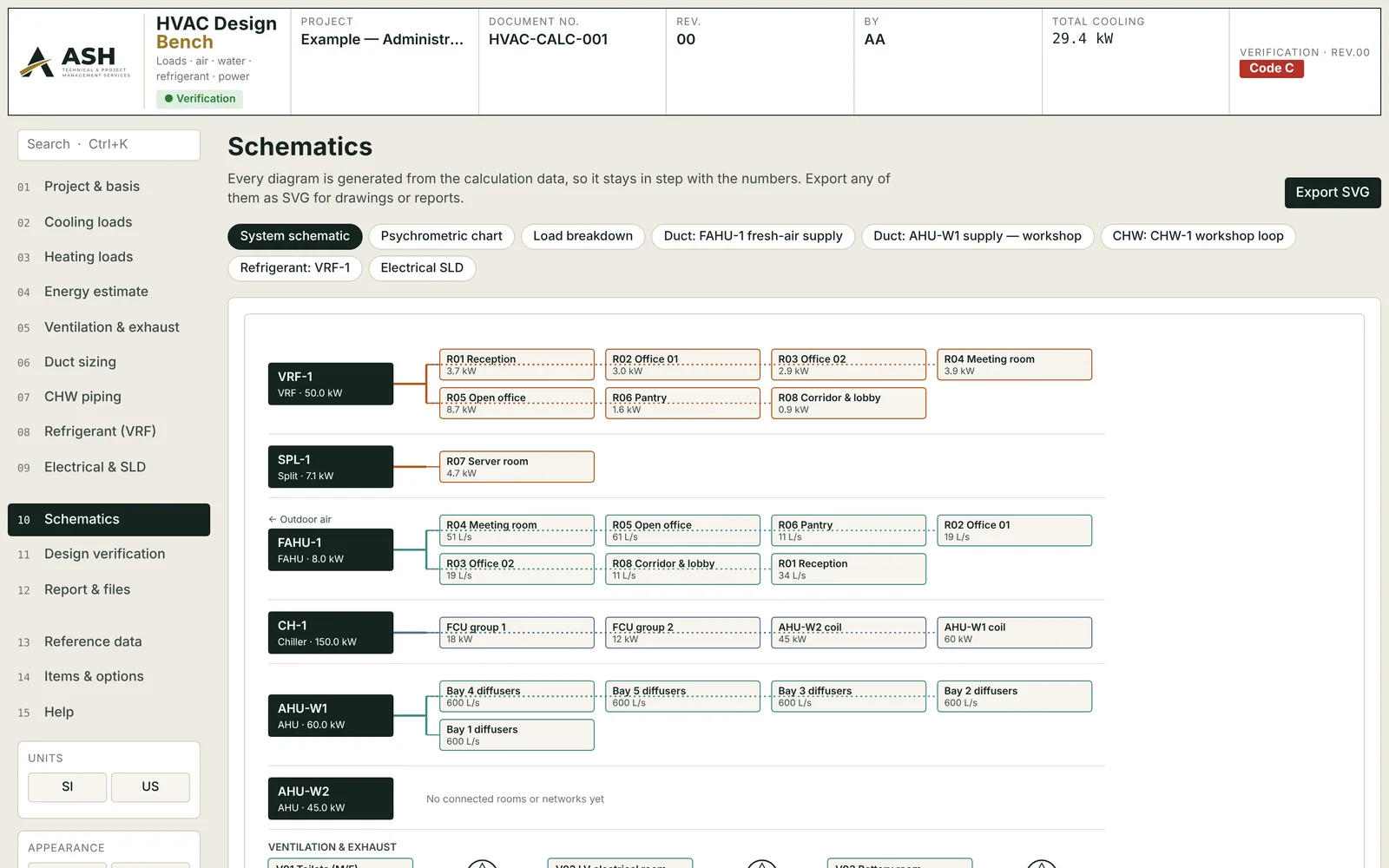

HVAC — Schematics
HVAC system schematic showing VRF, split, fresh-air, chiller and air-handling systems with the rooms and loads each one serves
HVAC schematicsSystem schematic, psychrometric chart, load breakdown, duct and chilled-water networks, refrigerant and electrical diagrams.
HVAC — Cooling loads
HVAC Design Bench, Cooling loads page: room list with loads per room, the room editor with envelope exposures, U-values, CLTD corrections and internal gains, and the totals strip
Cooling loadsRoom-by-room block loads with envelope, glazing, people, lighting and equipment; totals, tonnage and air quantities update as you type.
HVAC — Duct sizing
HVAC Design Bench, Duct sizing page: a fresh-air network with segments from the fan outward, equal-friction sizing, velocities, friction and the index run
Duct sizingSegments named from the fan outward, equal-friction or velocity sizing, index run and fan static.
Piping — Line list & hydraulics
Piping Design Bench, Line list and hydraulics page: one row per line with fluid, service, flow, pipe, installation, velocity, pressure drop and review code, and the hydraulic results of the selected line
Line list & hydraulicsOne row per line: fluid, service, pipe and installation; Darcy–Weisbach results and the review code per line.
Piping — Surge (water hammer)
Piping Design Bench, Surge page: a pump-trip case with wave speed, pipe period, Joukowsky rise, maximum and minimum pressures and the pressure-against-closure-time chart
SurgeJoukowsky and transient cases per line: wave speed, pipe period, maximum and minimum pressures against the allowable.
Architectural — Means of egress
Architectural Design Bench, Means of egress page: exits, stair and door widths, travel distance, common path and dead ends per storey, measured against required values with review codes
Means of egressExits, stair and door widths, travel distance, common path and dead ends per storey — measured values against the code minimum, each with its review code.
Plumbing & Fire — Sprinkler hydraulics
Plumbing and Fire Design Bench, Sprinkler hydraulics page: design area criteria, hazard, density, K-factor, pipe schedule and the design-area calculation by the density / area method
Sprinkler hydraulicsDesign area by the density / area method: hazard, density, K-factor and schedule set the heads to calculate; the tree is balanced to the supply curve.
Process — Heat exchangers
Process Design Bench, Heat exchangers page: hot and cold side data, flow arrangement, service U-value, duty, LMTD, correction factor and area required against area provided
Heat exchangersEnergy balance across hot and cold side, LMTD with the F correction, U from the service table — duty and area required beside the area provided.
Structural — BOQ / take-off
Structural Design Bench, BOQ and material take-off page: bills by MasterFormat division with quantities measured from the design data, unit, rate and amount columns
BOQ / take-offQuantities measured from the design data and the drawings, in MasterFormat divisions with rate and amount columns — the same page in twelve benches; export to Excel in the bill layout.
Built for review

The reviewer's calculation, not just the designer's.

Most design software stops at the design. The benches carry on to the check a supervision consultant, PMC or client team has to make of a design by others — and to the paperwork that follows it.

Code A · compliantCode B · commentsCode C · revise

Design review software →

Submitted beside calculated

Enter the values from the contractor's calculation or drawing; each one is compared with the bench's own result against acceptance bands you set, and coded A, B or C with the clause it rests on.

CRS rows, not screenshots

Comments come out as CRS rows in your format — category, clause, review code, status coloured by code — ready to paste or export to Excel.

Resubmissions without retyping

Start the Rev.01 review and the open comments are frozen as history; follow-ups sit under the original in the same row, and items now compliant close as Code A.

Schedule checks

Paste a contractor's cable or instrument schedule: missing and extra cables, ratings, voltage drop with the scheduled length, cores, segregation and spares are re-checked line by line.

Validation

Every number has a source.

Code values are entered from the standards held in our library, never from memory — and checked again whenever a newer edition arrives.

How the benches are validated →

Documents-only rule

Where a standard is not held, the field is left editable and the clause it belongs to is named. Requirement packs quote the edition in force, and every check prints its clause in the report.

The validation pack

Hand calculations, closed-form solutions, code tables and published worked examples, re-run by the benches every release. The validation pack ships with the suite, with the checksum of every build it tested.

Verified clause by clause

Recent releases re-checked the structural bench against SBC 2018 and SBC 2024 and against AISC 360-22, egress tables against IBC 2015 and 2018 and fixture tables against IBC 2015, drainage against IPC 2021 and ventilation against IMC 2018.

Built on live work

Used on our own assignments; trial builds evaluated by structural, ICT, instrument and process engineers. Every release is backed up, checksummed and logged.

SBC 201 · 301 · 304 · 801Saudi Civil Defence 2024ACI 318ASCE 7AISC 360-22IBCIPCIMCIFCNFPA 13 · 14 · 20 · 72 · 92 · 101 · 2001NECIEC 60364 · 60909 · 61439IEEE 1584ASHRAE FundamentalsASME B31.3API 520ISO 5167IEC 61511IEC 62676-4ISO/IEC 11801QCS 2014Qatar Civil Defence
What's new

Released in small steps, logged in full.

Every release carries its number in the file name, so a reviewer can keep two releases side by side and compare them. The latest release is shown first; earlier releases are in the revision history.

Preview21 Nov 2026

ASH Town Planning Suite T2.4 · online trial — a fourth preview suite, for planning new towns, new districts and housing schemes on open land: site survey and terrain, an automatic first layout with a plan editor, the master plan, services and networks, subdivision and development control, compliance, and the civil roads, utilities and networks — eleven tabs on the platform core of release 2.90. It opens with the same trial code as the Design Suite and ELDAS. It is a trial build for planners: tabs may change, and land-use and design figures are engineering defaults until the authority's own are entered.

2.9020 Nov 2026

v2.90 · ELDAS E3.21 · M1.12 · S1.12 · C1.13 — the SBC 2024 clauses confirmed. A project on SBC 2024 now cites the 2024 documents on the Structural bench's Load take-down and Frame analysis (3D) pages, in their reports and check registers: SBC 301-CR-24 §4.7.2 (live-load reduction, Table 4-3), SBC 304-CR-24 (stiffness, Table 6.6.3.1.1(a); Ec, §19.2.2.1(b)) and SBC 301-CR-24 §12.12.1 (storey drift, Table 12-9). The values are the same as in the 2018 edition; a project on SBC 2018, or on none, keeps the 2018 citations (drift Table 12-8) and says so. Changing a project's code edition marks a 3D frame result out of date until the frame is run again. ASCE 7-22 and ACI 318-19 themselves are not held in the ASH library, and the notes say that. Validation pack: 246 of 246 cases. The Town Planning trial host is built on the same core.

2.8920 Nov 2026

v2.89 · ELDAS E3.20 · M1.11 · S1.11 · C1.12 — the 3D frame. Structural bench: a new Frame analysis (3D) page made from the building model — columns and beams as members, walls as wide columns, one rigid floor diaphragm per level. Gravity cases come from the load take-down and the frame's base reactions are checked against its totals; wind and seismic forces are entered per storey (not yet derived from the code); load combinations, storey drift against SBC 301 §12.12.1, member force envelopes and four concurrent design-force sets per column end follow, and RC column rows can take their forces from the frame. Linear elastic, first order. The load take-down now reduces live load by the project's code (SBC 301 §4.7 on a Saudi Building Code project, ASCE 7-22 otherwise). Every product, online host and trial file with a diagram editor now reads a PDF drawing as a background. Validation pack: 246 of 246 cases (25 new, among them a building solved against an independent finite-element model).

2.8820 Nov 2026

v2.88 · ELDAS E3.19 · M1.10 · S1.10 · C1.11 — building model and load take-down. Structural bench: a Building model page (grid lines, storeys, slab panels, beams, columns and walls, with a plan of each level) and a Load take-down page that carries the gravity loads from slab to beam to column or wall to footing, storey by storey, with live-load reduction and a check that the applied load equals the base reactions. Design members (beams, RC columns, footings, shear walls, slabs) can be created from the model and their loads follow it; Beam analysis gains a varying load. Online trials: data exported from a trial — CSV, Excel, DXF, SVG, PNG, GeoJSON, KML and printed pages — now carries a trial mark, and the end of a trial removes background drawings. Validation pack: 221 of 221 cases.

Preview2 Nov 2026

Three preview suites, one trial code. The ASH Mechanical & Plumbing Suite, the ASH Fire & Life Safety Suite and the ASH Civil Suite open as online trials with the same code as the Design Suite and ELDAS. Each is a selection of the existing benches under one tab strip — the same engines, not a second program — and the composition is under expert review, so tabs may change.

Full revision history — all releases →

Free software

Two desktop tools, free for anyone.

Alongside the suite we publish two open-source Windows programs under the MIT licence — the tools we use on our own reviews. No account, no registration, no licence key.

ASH PDF Studio · 0.2.24

PDF viewer and editor

Annotations, stamps and signatures, new PDFs and dropped-in pictures and documents, page tools, editing of the original text and images, redaction, OCR, Word and Excel conversion, measuring at the drawing scale, comparing two revisions, split view — for any PDF, on your own machine.

DownloadUser guide

ASH Draw Studio · 0.2.7

DWG / DXF drafting and review

A 2D CAD program with the familiar commands, blocks, layers, dimensions, layouts and plotting — plus compare two revisions and mark up with review codes. Opens AutoCAD 2018 drawings.

DownloadUser guide

Licence

MIT, open source

Free to use and modify for private and commercial work, without warranty. Source, release notes and checksums on GitHub; the DWG converter is LibreDWG (GPL-3.0), shipped as a separate program with its source.

Installing & licence

How it runs

Nothing to install. Nothing to host.

A bench is one HTML file. Put it on a shared drive, double-click it, and it opens in Chrome or Edge — fully offline. Projects are saved as plain files you can version, e-mail and archive.

Deployment

One file per bench

No installer, no IT approval, no account. Works on any Windows or Mac computer with Chrome or Edge, with or without a network.

Units & regions

SI or US customary

Switch units in the sidebar; values are stored in SI. 50 Hz or 60 Hz supply. GCC code set first; EU and US code families to follow.

Output

Reports and schedules

Calculation report with the clause behind every value and the standards as an annex, Excel and CSV schedules, SVG diagrams, EPANET exchange for water networks.

Packages

Licence the whole suite, one bench, or one stage.

Licences are offline files signed by ASH — installed in seconds, no server, no account — with yearly renewal.

Full suite

Every bench, every stage

Every discipline bench, the Integrated bench, Data Import and the Review Register. Enterprise multi-user access.

Single bench

One discipline, in full

Concept, detailed design and verification for one discipline. Single- or multi-user.

Design or review only

The stage you need

A design package (concept and detailed design) or a review package (verification only — for supervision consultants and PMCs). Single- or multi-user.

Pricing is published after the company registration completes; ask for a quotation in the meantime.

Questions
Which codes and standards do the benches use?

The Saudi Building Code set (SBC 201, 301, 304 and 801) and the Saudi Civil Defence regulations, ACI 318 and ASCE 7, AISC 360-22, the International Codes (IBC, IPC, IMC, IFC), NFPA 13, 14, 20, 72, 92, 101 and 2001, NEC and IEC 60364 / 60909 for electrical, IEEE 1584 for arc flash, ASHRAE Fundamentals for HVAC, ASME B31.3, API 520, ISO 5167 and IEC 61511 for piping and instruments, IEC 62676-4 for CCTV, and QCS 2014 with the Qatar Civil Defence guidelines among others. Every check names its clause, and each requirement pack states the edition it quotes.

Does it replace finite-element or building-energy software?

No. The benches cover the member, system and network calculations of everyday design and review — frames, feeders, ducts, networks, sprinkler areas — with the transparency a reviewer needs. Whole-building finite-element models and detailed hourly energy simulation stay with their specialist tools; the benches sit beside them and check what they produce.

Can I bring in the contractor's schedules?

Yes. Import data in any bench reads Excel, CSV, pasted tables and DXF; the Data Import tool also reads schedules from text PDFs and traces single-line diagrams. Cable and instrument schedules can be checked line by line against the calculation.

Is my project data sent anywhere?

Your project never leaves your computer: the benches and ELDAS keep projects in the browser and in the files you save. The pages and the trial applications serve their own fonts and do not contact Google. See the privacy notice.

Can I try it on a real package?

Yes. ASH ELDAS (electrical) has a 30-day online trial — every tab and stage, watermarked reports: register at ashdesignsuite.com/eldas/. The other 17 design benches have the same 30-day online trial with the same code — 15 in one page, HVAC and Piping as their own pages: register at ashdesignsuite.com/trial/. All trials include the ASH Assistant. The ASH P&L Suite (project P&L, risk and cash flow) has the same 30-day online trial with the same code. So has the ASH Town Planning Suite (preview): towns, districts and housing schemes on open land.

Feedback

Tell us what you found.

A wrong value, a clause that moved, a page that could be clearer, a bench you wish existed — every message is read by the engineer who built the software and answered from the same address.

Goes straight to [email protected]; a reply comes to the address you enter. Nothing else is kept by the site — see Privacy.

Inside the software

Every trial bench and ELDAS has the same route: Help ▸ About, feedback & known limits lists what is new, the known limits and a feedback link that carries the product and version for you.

Direct

[email protected] for software matters; [email protected] for trials, licences and quotations.

What happens next

Confirmed defects go into the next release and are listed on the Help page of that release; code references are checked against the edition in the library and the finding is recorded with the bench.

Trial

Try it today — online or as a file.

[email protected]

The trial builds are time-limited, open at the design-review stage and watermark their reports. For a walk-through on a package of yours, or the full version: which bench, whether you design or review, and how many people would use it — we reply within one business day.

TrialELDAS and all 17 design benches: 30 days online, one registration, watermarked reports
LicenceOffline file, yearly renewal
SupportBy e-mail, one business day
PlatformChrome or Edge, Windows or Mac, offline
UnitsSI / US customary, 50 / 60 Hz
PublisherASH Technical & Project Management Services
